Quad Extra 406 HE 50 Chuck (QX406HE50T51)

STANDARD SUPPLY SPECIFICATION
- Permanent-electro magnetic chuck in monolithic technology construction and mono-block polar plate with double action hard steel conical screws, complete with waterproof fast connector ERGON-10 series
- Set of side slots to fix the chuck on machine table
- Instruction book on digital support
- Standard packaging

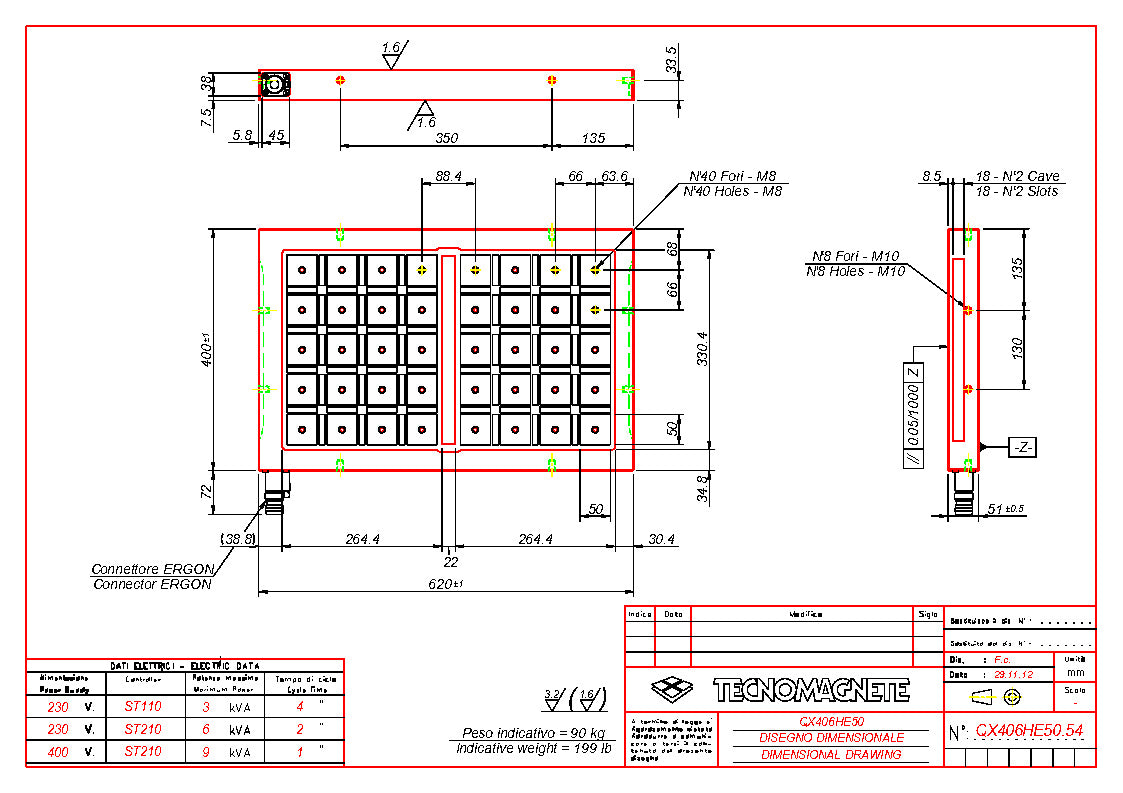

15.75" x 24.4" x 2"

40 - 50mm poles producing 16 tons of clamping force.

Controller sold separately
